Theory
A Genetic Algorithm (GA) functions as a search metaheuristic, drawing inspiration from Charles Darwin's evolutionary theory. This algorithm reflects the process of natural selection, where the fittest individuals are selected for reproduction to produce offspring of the next generation [1]. Genetic Algorithm was developed by J. Holland [2].
According to Darwin's theory of evolution, generations with characteristics of superiority over the other generations will have a greater chance of survival. Therefore, their superior characteristics will be transferred to the next generations. On the other hand, the second part of Darwin's theory states that when multiplying children, an event occurs that changes the characteristics of the children. If these changes benefit the children, it will increase the probability of survival for those children [3,4].
In GA, the new populations are produced by iterative use of genetic operators on agents present in the population. These are the genetic operators considered in this algorithm [5]:
Genetic operators
Selection
The selection function specifies how the Genetic algorithm chooses parents for the next generation. Below, you can see some selection operators.
Roulette Wheel
Roulette wheel also known as fitness proportional selection selects parental solutions randomly with uniform distribution. The probability for being selected depends on the fitness of a solution. For this sake, the relative fitness of solutions normalized with the sum of all fitness values in a population, usually by division. This fraction of fitness can be understood as probability for a solution of being selected [9].
Table 1 shows the porpotional fitness \( \left(fit_i/\sum_{i=1}^n fit_i\right) \) about a population. Figure 1 shows a graphical schematic of the roulette wheel algorithm.
| Population id | Fitness | % of total |
|---|---|---|
| 0 | 6.31 | 31 |
| 1 | 1.11 | 5 |
| 2 | 8.48 | 38 |
| 3 | 2.57 | 12 |
| 4 | 3.08 | 14 |
Table 1. Population fitness [10].

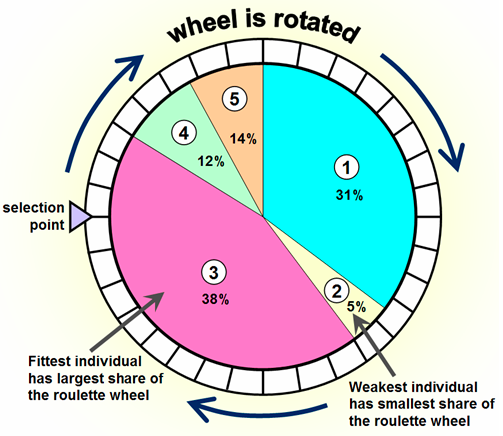

Figure 1. Roulette wheel schema [10].
Crossover
The crossover function specifies how the Genetic Algorithm combines individuals or parents to form a crossover child for the next generation. Below, you can see some crossover operators.
Linear crossover [6]
From the two parent points \(\symbf{p_0}\) and \(\symbf{p_1}\) three new points are generated (offspring). See equations [1] to [3]. \(k\) is the \(k\)th component of the design variable vector and \(t\) is a current iteration.
| \[ ch_{a,k} = 0.50 \cdot p_{0,k}^{t} + 0.50 \cdot p_{1,k}^{t}\] | (1) |
| \[ ch_{b,k} = 1.50 \cdot p_{0,k}^{t} - 0.50 \cdot p_{1,k}^{t}\] | (2) |
| \[ ch_{c,k} = -0.50 \cdot p_{0,k}^{t} + 1.50 \cdot p_{1,k}^{t}\] | (3) |
The best one of the three points (offspring a \(=\;\mathbf{ch}_{a}\), offspring b \(=\;\mathbf{ch}_{b}\) and offspring c \(=\;\mathbf{ch}_{c}\)) are selected. See equation (4).
| \[min(of_{ch_{a}}, of_{ch_{b}}, of_{ch_{c}}) \; \Rightarrow \; \symbf{x}^{t+1} = best(\symbf{ch}_a, \symbf{ch}_b, \symbf{ch}_c)\] | (4) |
Blend crossover (BLX- \(\alpha\)) [7]
From the two parent points \(\symbf{p_0}\) and \(\symbf{p_1}\) two new points are generated (offspring). See equations [5] to [7]. \(k\) is the \(k\)th component of the design variable vector and \(\alpha\) be a uniformly distributed random number such that \(\alpha \in \left[0, 1 \right]\). \(t\) is a current iteration.
| \[ ch_{a,k} = min( p_{0,k}^{t}, p_{1,k}^{t} ) - \alpha \cdot d_{k}^{t}\] | (5) |
| \[ ch_{b,k} = max( p_{0,k}^{t}, p_{1,k}^{t} ) + \alpha \cdot d_{k}^{t}\] | (6) |
| \[ d_{k}^{t} = \left| p_{0,k}^{t} - p_{1,k}^{t} \right| \] | (7) |
The best one of the two points (offspring a \(=\;\mathbf{ch}_{a}\) and offspring b \(=\;\mathbf{ch}_{b}\)) are selected. See equation (8).
| \[min(of_{ch_{a}}, of_{ch_{b}}) \; \Rightarrow \; \symbf{x}^{t+1} = best(\symbf{ch}_a, \symbf{ch}_b)\] | (8) |
Heuristic crossover [11]
From the two parent points \(\symbf{p_0}\) and \(\symbf{p_1}\) two new points are generated (offspring). See equations [9] and [10]. \(k\) is the \(k\)th component of the design variable vector and \(\alpha\) be a uniformly distributed random number such that \(\alpha \in \left[0, 1 \right]\). \(t\) is a current iteration.
| \[ ch_{a,k} = p_{0,k}^t + \alpha \cdot \left( p_{0,k}^{t} - p_{1,k}^{t} \right) \] | (9) |
| \[ ch_{b,k} = p_{1,k}^t + \alpha \cdot \left( p_{1,k}^{t} - p_{0,k}^{t} \right) \] | (10) |
The best one of the two points (offspring a \(=\;\mathbf{ch}_{a}\) and offspring b \(=\;\mathbf{ch}_{b}\)) are selected. See equation (11).
| \[min(of_{ch_{a}}, of_{ch_{b}}) \; \Rightarrow \; \symbf{x}^{t+1} = best(\symbf{ch}_a, \symbf{ch}_b)\] | (11) |
Simulated Binary crossover [12]
From the two parent points \(\symbf{p_0}\) and \(\symbf{p_1}\) two new points are generated (offspring). See equations [12] to [14]. \(k\) is the \(k\)th component of the design variable vector and \(\alpha\) be a uniformly distributed random number such that \(\alpha \in \left[0, 1 \right]\). \(t\) is a current iteration.
| \[ ch_{a,k} = 0.50 \cdot \left( \left(1 + \beta\right) \cdot p_{0,k}^{t} + \left(1 - \beta\right) \cdot p_{1,k}^{t} \right) \] | (12) |
| \[ ch_{b,k} = 0.50 \cdot \left( \left(1 - \beta\right) \cdot p_{0,k}^{t} + \left(1 + \beta\right) \cdot p_{1,k}^{t} \right) \] | (13) |
| \[ \beta = \left\{\begin{matrix} \left(2 \cdot \alpha \right)^\frac{1}{1+\eta_c} \;\; if \;\alpha \leq 0.50 \\ \left(\frac{1}{2 \cdot (1-\alpha)}\right)^\frac{1}{1+\eta_c} \; \; otherwise \end{matrix}\right. \] | (14) |
The parameter \(\beta (\alpha)\) depends on the random number \(\alpha\). \(\beta\) is called the spread factor and is defined as the ratio between the spread of the children's and the parent's values. \(\eta_c\) index (a user-defined control parameter) alters the exploration capability of the crossover operator. Specifically, a small index induces a more significant probability of building children's values distant from the parent's values, whereas high indexes tend to create solutions very similar to the parents [12]. \(\eta_c\) is any nonnegative real number. A moderate value of \(\eta_c\) are 2 to 5 [13].
The best one of the two points (offspring a \(=\;\mathbf{ch}_{a}\) and offspring b \(=\;\mathbf{ch}_{b}\)) are selected. See equation (15).
| \[min(of_{ch_{a}}, of_{ch_{b}}) \; \Rightarrow \; \symbf{x}^{t+1} = best(\symbf{ch}_a, \symbf{ch}_b)\] | (15) |
Arithmetic crossover
From the two parent points \(\symbf{p_0}\) and \(\symbf{p_1}\) two new points are generated (offspring). See equations [16] and [17]. \(k\) is the \(k\)th component of the design variable vector and \(\alpha\) (weighting factor) be a uniformly distributed random number such that \(\alpha \in \left[0, 1 \right]\). \(t\) is a current iteration.
| \[ ch_{a,k} = \alpha \cdot p_{0,k}^t + \left( 1 - \alpha \right) \cdot p_{1,k}^{t} \] | (16) |
| \[ ch_{b,k} = \alpha \cdot p_{1,k}^t + \left( 1 - \alpha \right) \cdot p_{0,k}^{t} \] | (17) |
The best one of the two points (offspring a \(=\;\mathbf{ch}_{a}\) and offspring b \(=\;\mathbf{ch}_{b}\)) are selected. See equation (18).
| \[min(of_{ch_{a}}, of_{ch_{b}}) \; \Rightarrow \; \symbf{x}^{t+1} = best(\symbf{ch}_a, \symbf{ch}_b)\] | (18) |
Laplace crossover [14]
From the two parent points \(\symbf{p_0}\) and \(\symbf{p_1}\) two new points are generated (offspring). See equations [19] to [22]. \(k\) is the \(k\)th component of the design variable vector and \(\alpha\) be a uniformly distributed random number such that \(\alpha \in \left[0, 1 \right]\). \(t\) is a current iteration. \(\mu \in \mathbb{R} \) is called the location parameter and \(\sigma > 0\) is termed as scale parameter.
| \[ ch_{a,k} = p_{0,k}^{t} + \beta \cdot d_{k}^{t}\] | (19) |
| \[ ch_{b,k} = p_{1,k}^{t} + \beta \cdot d_{k}^{t}\] | (20) |
| \[ d_{k}^{t} = \left| p_{0,k}^{t} - p_{1,k}^{t} \right| \] | (21) |
| \[ \beta = \left\{\begin{matrix} \mu - \sigma \cdot \ln (\alpha) \;\; if \;\alpha \leq 0.50 \\ \mu + \sigma \cdot \ln (\alpha) \; \; otherwise \end{matrix}\right. \] | (22) |
For smaller values of \(\sigma\), offsprings are likely to be produce near the parents and for larger values of \(\sigma\) offsprings are expected to be produced far from the parents. Value of \(\sigma\) is set to 1 or 0.5 and \(\mu\) is set to 0 [15].
The best one of the three points (offspring a \(=\;\mathbf{ch}_{a}\), offspring b \(=\;\mathbf{ch}_{b}\) and offspring c \(=\;\mathbf{ch}_{c}\)) are selected. See equation (23).
| \[min(of_{ch_{a}}, of_{ch_{b}}, of_{ch_{c}}) \; \Rightarrow \; \symbf{x}^{t+1} = best(\symbf{ch}_a, \symbf{ch}_b, \symbf{ch}_c)\] | (23) |
Binomial crossover
From the two parent points \(\symbf{p_0}\) and \(\symbf{p_1}\) one new point is generated (offspring). See equation [24]. \(k\) is the \(k\)th component of the design variable vector and \(\alpha\) be a uniformly distributed random number such that \(\alpha \in \left[0, 1 \right]\). \(t\) is a current iteration.
| \[ x_{i,k}^{t+1} = \left\{\begin{matrix} p_{1,k}^{t} \;\; if \;\alpha\leq p_c\\ p_{0,k}^t \; \; otherwise \end{matrix}\right. \] | (24) |
\(p_c\) is the crossover rate \(\left(p_c \in \left[0,1\right] \right)\) selected by user.
Mutation
Mutation specifies how a Genetic Algorithm makes small random changes in the individuals in the population to create mutated children. Mutation provides genetic diversity and enables Genetic Algorithm to search a broader space. See one mutation example in HC algorithm theory. All formats of the mutation procedure are present in the GA framework.
Hill Climbing mutation
See one mutation example in HC algorithm theory.
Algorithm
1: Input initial parameters (p_c, p_m, n_population,n_iteration, x_lower, x_upper, fit_function, obj_function, n_dimensions)
2: Input initial guess (x_pop)
3: Calculate of and fit (initial population)
4: for iter in range(n_iterations):
5: Apply selection operator
6: r = random number [0,1]
7: if r <=p_c:
8: Apply crossover operator
9: r = random number [0,1]
10: if r <= p_m:
11: Apply mutation operator
12: if fit(x_temp) > fit(x_pop):
13: x_pop(iter+1) = x_temp
14: else:
15: x_pop(iter+1) = x_pop(iter)
See GA algorithm in METApy Framework.
Example 1
Use the Genetic Algorithm optimization method to optimize the 2D sphere function. Use a total of 2 iterations to perform the optimization. Consider the limits \(\mathbf{x}_L = [-5.0, -5.0]\) and \(\mathbf{x}_U = [5.0, 5.0]\) for the problem design variables. Consider the initial guess (Three agents) \(\mathbf{pop}_0 = [-0.74, 1.25]\), \(\mathbf{pop}_1 = [3.58, -3.33]\) and \(\mathbf{pop}_2 = [1.50, 1.50]\). Use roulette wheel for selection procedure, linear crossover for crossover (82% rate) and hill climbing mutation (12% rate, \(cov=15\%\) and Gaussian generator).
Solution
Genetic Algorithm 01- report
Initial population
x0 = [-0.74, 1.25], of_pop 2.1101, fit 0.3215330696762162 - best solution
x1 = [3.58, -3.33], of_pop 23.9053, fit 0.040152096140179
x2 = [1.5, 1.5], of_pop 4.5, fit 0.18181818181818182
Iterations
Iteration: 1
Pop id: 0 - particle movement
Selection operator
sum(fit) = 0.22197027795836083
probs(fit) = [0.0, 0.18088951597254424, 0.8191104840274557]
selected agent id = 1
Crossover operator - Linear crossover
offspring a = [1.42, -1.04], of_a 3.098
offspring b = [-2.9, 3.54], of_b 20.9416
offspring c = [5.0, -5.0], of_c 50.0
update x = [1.42, -1.04], of = 3.098, fit = 0.2440214738897023
Mutation operator
Dimension 0: mean = 1.42, sigma = 0.21299999999999997, neighbor = 1.4985129991098818
Dimension 1: mean = -1.04, sigma = 0.15600000000000003, neighbor = -1.0535911109506693
update x = [1.4985129991098818, -1.0535911109506693], of = 3.355595437575558, fit = 0.22958973447649375
fit_i_temp < fit_pop[pop] - not accept this solution
Pop id: 1 - particle movement
Selection operator
sum(fit) = 0.5033512514943981
probs(fit) = [0.6387846831047258, 0.0, 0.36121531689527414]
selected agent id = 2
Crossover operator - Linear crossover
offspring a = [2.54, -0.915], of_a 7.288825
offspring b = [4.62, -5.0], of_b 46.3444
offspring c = [0.45999999999999996, 3.915], of_c 15.538825000000001
update x = [2.54, -0.915], of = 7.288825, fit = 0.12064436153495822
No mutation 0.9041777148613984 > p_m = 0.12
fit_i_temp > fit_pop[pop] - accept this solution
Pop id: 2 - particle movement
Selection operator
sum(fit) = 0.4421774312111744
probs(fit) = [0.7271584820498423, 0.2728415179501576, 0.0]
selected agent id = 0
Crossover operator - Linear crossover
offspring a = [0.38, 1.375], of_a 2.035025
offspring b = [2.62, 1.625], of_b 9.505025
offspring c = [-1.8599999999999999, 1.125], of_c 4.725225
update x = [0.38, 1.375], of = 2.035025, fit = 0.32948657754054744
No mutation 0.6805018349694458 > p_m = 0.12
fit_i_temp > fit_pop[pop] - accept this solution
update solutions
x0 = [-0.74, 1.25], of_pop 2.1101, fit 0.3215330696762162
x1 = [2.54, -0.915], of_pop 7.288825, fit 0.12064436153495822
x2 = [0.38, 1.375], of_pop 2.035025, fit 0.32948657754054744 - best solution
Iteration: 2
Pop id: 0 - particle movement
Selection operator
sum(fit) = 0.45013093907550566
probs(fit) = [0.0, 0.2680205937026718, 0.7319794062973282]
selected agent id = 2
No crossover 0.8211070296158199 > p_c = 0.82
No mutation 0.2091585539994938 > p_m = 0.12
fit_i_temp < fit_pop[pop] - not accept this solution
Pop id: 1 - particle movement
Selection operator
sum(fit) = 0.6510196472167636
probs(fit) = [0.4938914993592482, 0.0, 0.5061085006407519]
selected agent id = 2
No crossover 0.931387636116316 > p_c = 0.82
Mutation operator
Dimension 0: mean = 2.54, sigma = 0.381, neighbor = 1.8273474406304766
Dimension 1: mean = -0.915, sigma = 0.13725, neighbor = -1.071939271796121
update x = [1.8273474406304766, -1.071939271796121], of = 4.488252471197551, fit = 0.18220736113143812
fit_i_temp > fit_pop[pop] - accept this solution
Pop id: 2 - particle movement
Selection operator
sum(fit) = 0.5037404308076543
probs(fit) = [0.6382911714287011, 0.361708828571299, 0.0]
selected agent id = 0
Crossover operator - Linear crossover
offspring a = [-0.18, 1.3125], of_a 1.75505625
offspring b = [0.9400000000000001, 1.4375], of_b 2.9500062500000004
offspring c = [-1.2999999999999998, 1.1875], of_c 3.1001562499999995
update x = [-0.18, 1.3125], of = 1.75505625, fit = 0.3629689956421035
No mutation 0.964612378290656 > p_m = 0.12
fit_i_temp > fit_pop[pop] - accept this solution
update solutions
x0 = [-0.74, 1.25], of_pop 2.1101, fit 0.3215330696762162
x1 = [1.8273474406304766, -1.071939271796121], of_pop 4.488252471197551, fit 0.18220736113143812
x2 = [-0.18, 1.3125], of_pop 1.75505625, fit 0.3629689956421035 - best solution
